    Steel Casing Battery Operation Rechargeable IP20 Led Emergency Downlight

    Ask Lasest Price
    Brand Name : Zhui Ming
    Model Number : EL1X3AN
    Certification : CE
    Supply Ability : 3000PCS/DAY
    Delivery Time : 45 Days after Deposit
    • Product Details
    • Company Profile

    Steel Casing Battery Operation Rechargeable IP20 Led Emergency Downlight


    Steel Casing LED Battery Operation Rechargeable Emergency Downlight Ceiling Recessed Light


    Product Specification

    Operation

    Non-maintained

    Input Voltage

    220V-240V 50/60Hz

    Charging Current

    40mA(Nominal)

    Lamp type

    1w /3w White LED

    Battery

    Nickel-mH Battery 3.6V 1.0Ah

    /Ni-cad Battery 3.6V 1.8AH

    Indicator

    Red LED Indicates Charging

    Duration Time

    More than 3 hours

    Construction

    Electro-galvanized Steel Casing with Corrosion Resistant Epoxy Spray Coating; PC Plate

    IP Rate

    IP20

    Installation

    Ceiling Recessed Mounted

    Weight

    0.5 kg

    Working Temperature

    -10℃ to 55℃

    Size

    350mm×110mm×38mm

    Tolerance ±0.03mm

    Customization

    Battery, Duration Time, Package, Wire length


    Technical Parameters:

    1. Input Power: AC 220V-240V 50Hz / 60Hz
    2. Light source:3W high power LED
    3. Emergency time ≥180 minutes
    4. emergency conversion time ≤IS
    5. Emergency switching voltage: AC 144V-204V 50Hz / 60Hz
    6. Battery: Ni-mH 3.6V / 1600mA
    7. Installing hole size: Ф75mm

    Operating Manual

    • Disconnect the AC power during installation.
    • This product should not be installed in places such as outdoors ,humid and corrosive gas and so on.
    • This product should use the separate loop-powered circuit.It should not share circuit with lighting or other electrical equipment (with a switch), in order to ensure this LED emergency Ceiling light can be recharged normally.
    • To ensure the product operating normally,it should be checked regularly.
    • The products have been discharged before leaving the factory.So it needs to be charged 24 hours when used .
    • If the product is in storage or not use for a long time, it should be charged and discharged once every three months, in order to protect the battery performance.
    • Please keep this manual.

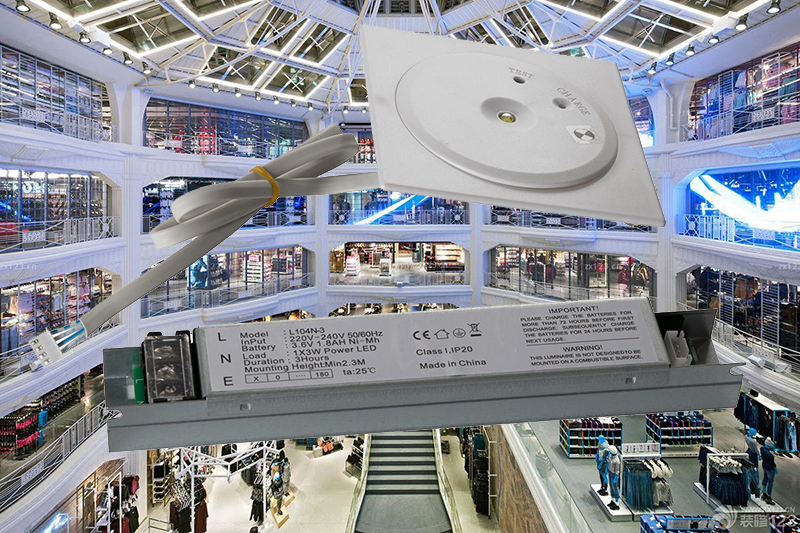

    Product Show:



    Quality Steel Casing Battery Operation Rechargeable IP20 Led Emergency Downlight for sale
